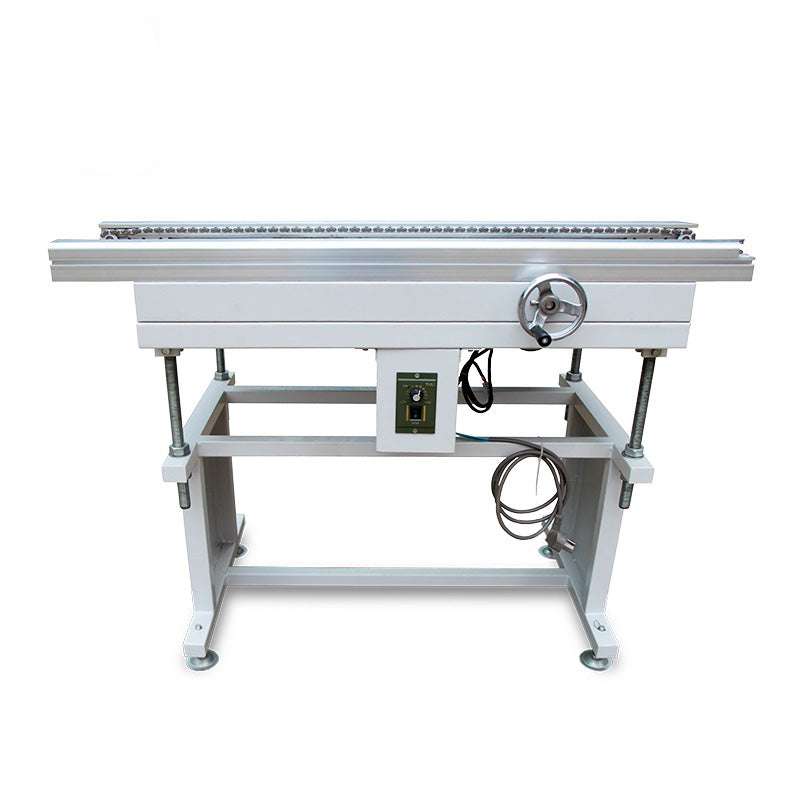

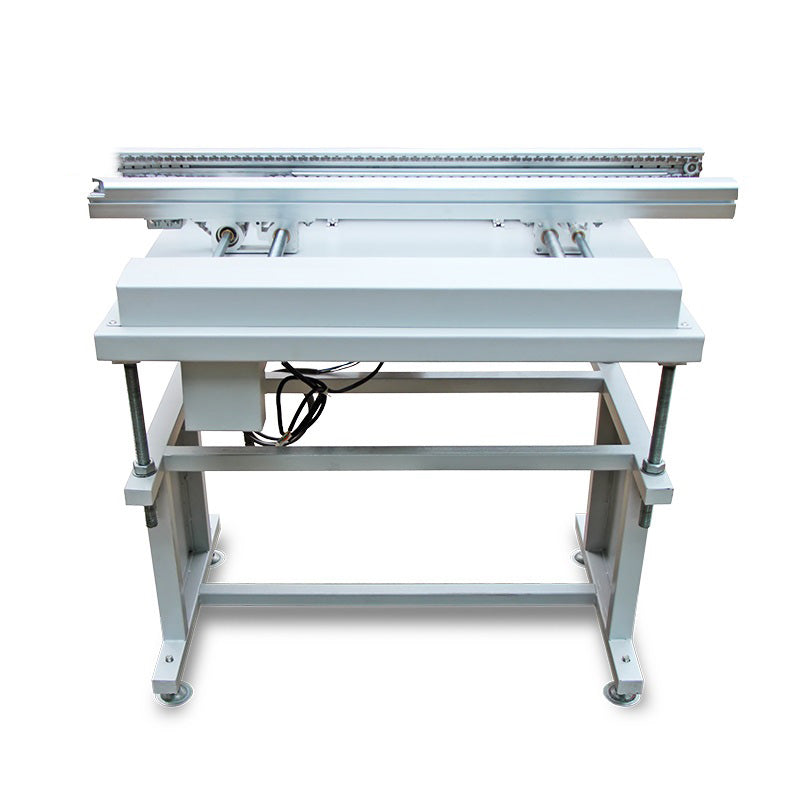

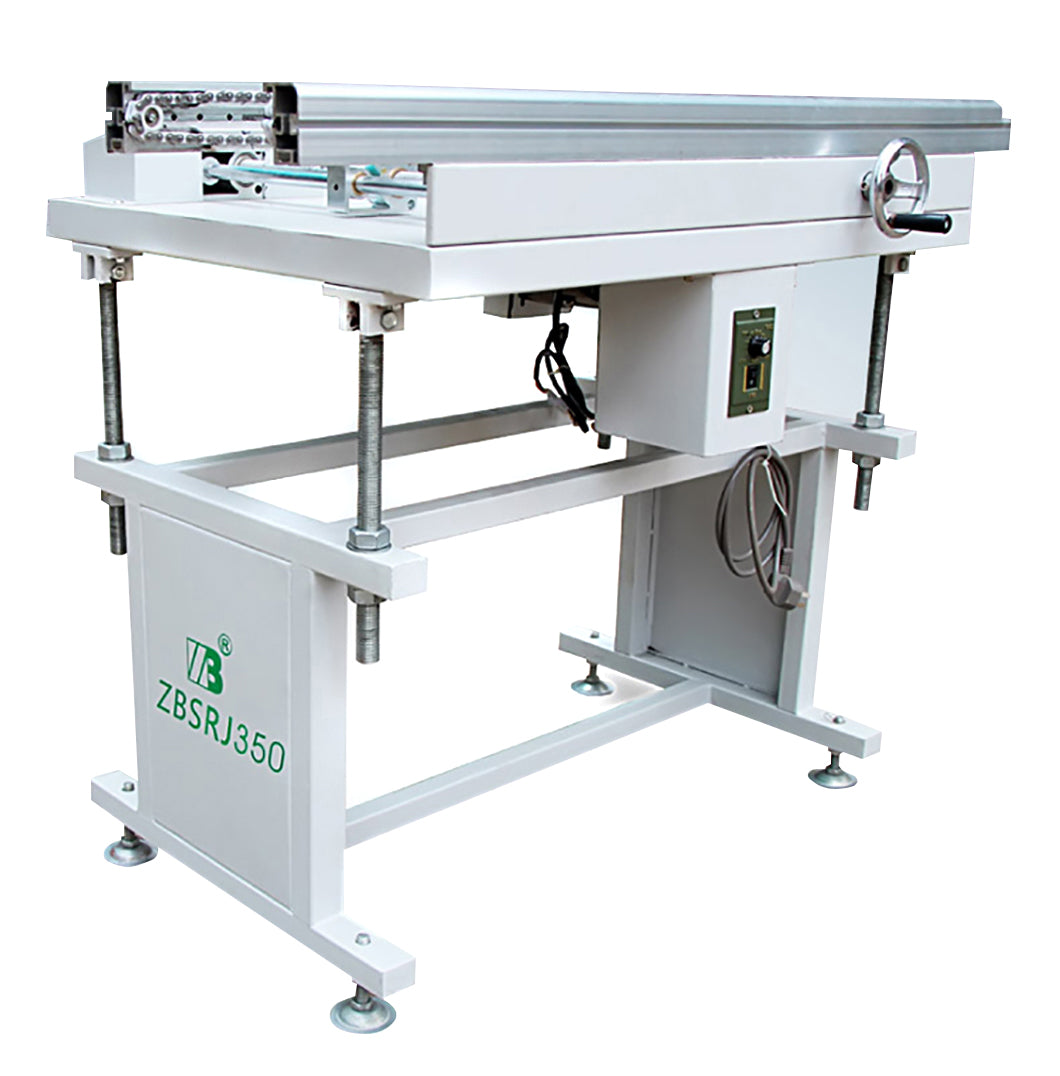

ZBSRJ350-1M Wave Soldering Machina PCB Inlet Conveyor (Input Linking Conveyor)

The Wave Soldering PCB Inlet Conveyor is designed for the front section of wave soldering lines, providing stable, adjustable, and reliable PCB transfer into the soldering machine. It ensures smooth loading, accurate alignment, and continuous feeding to achieve consistent THT soldering quality.

Key Features

• Optimized for Wave Soldering Input Section
  Connects directly to the wave soldering machine, guiding PCBs steadily into the preheating and soldering zones.

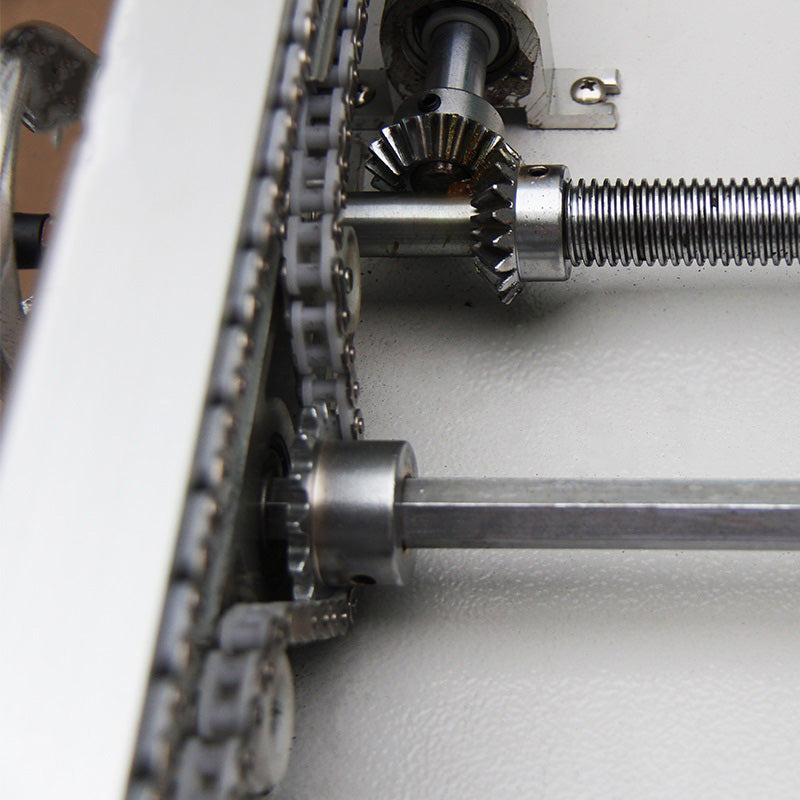

• Precision Width Adjustment
  Equipped with a hand-wheel width adjustment mechanism to adapt to various PCB sizes quickly and accurately.

• Stable Support & Height Adjustment
  Adjustable legs allow easy height matching with different wave soldering equipment.

• Anti-Static Aluminum Rails
  High-strength aluminum guide rails ensure smooth PCB transportation while preventing ESD damage.

• Durable Frame Structure
  Heavy-duty welded steel construction ensures stability for continuous 24/7 THT production environments.

• Smooth and Controlled Transfer
  The conveyor is designed to prevent board vibration or misalignment, ensuring proper entry into the soldering pallet or conveyor fingers.

Applications

• Front-end conveyor for wave soldering machines

• PCB loading and alignment before preheating

• THT assembly lines for home appliances, power supplies, lighting, automotive electronics, etc.

• Any manual or automatic line requiring stable PCB input
