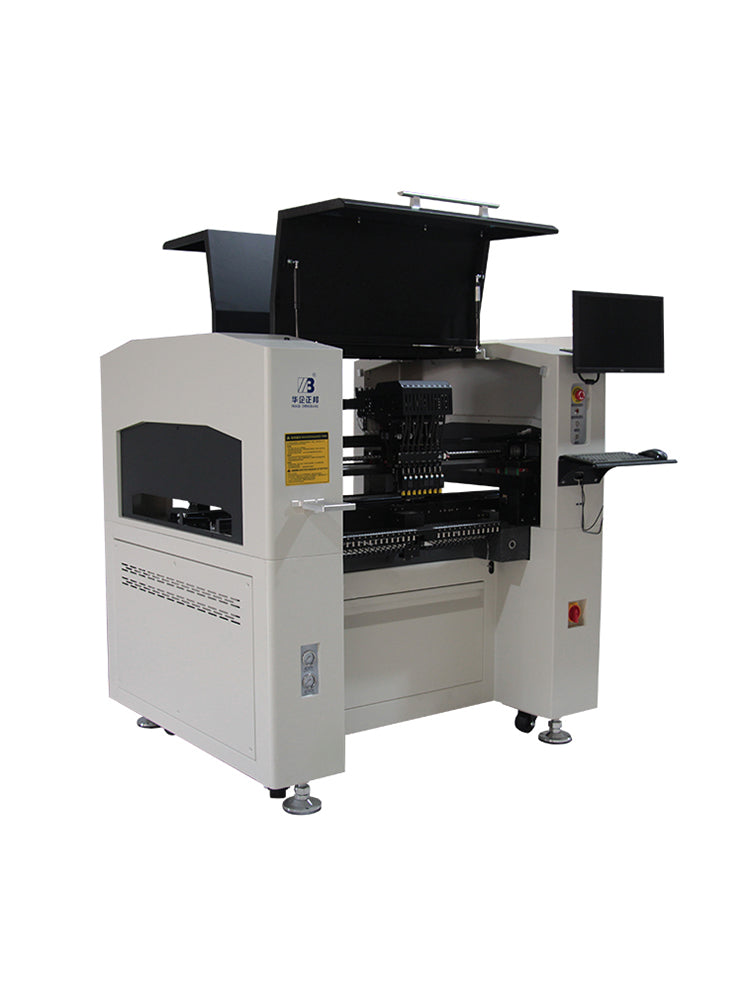

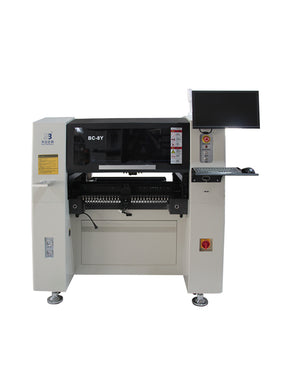

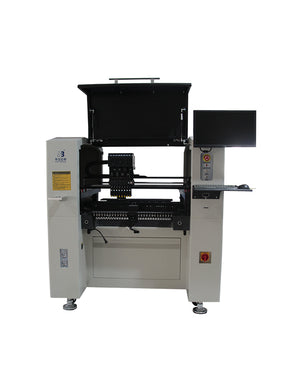

BC-8Y pick and place machine
Quantity:
|
Model number
|
BC-8Y
|
|||
|

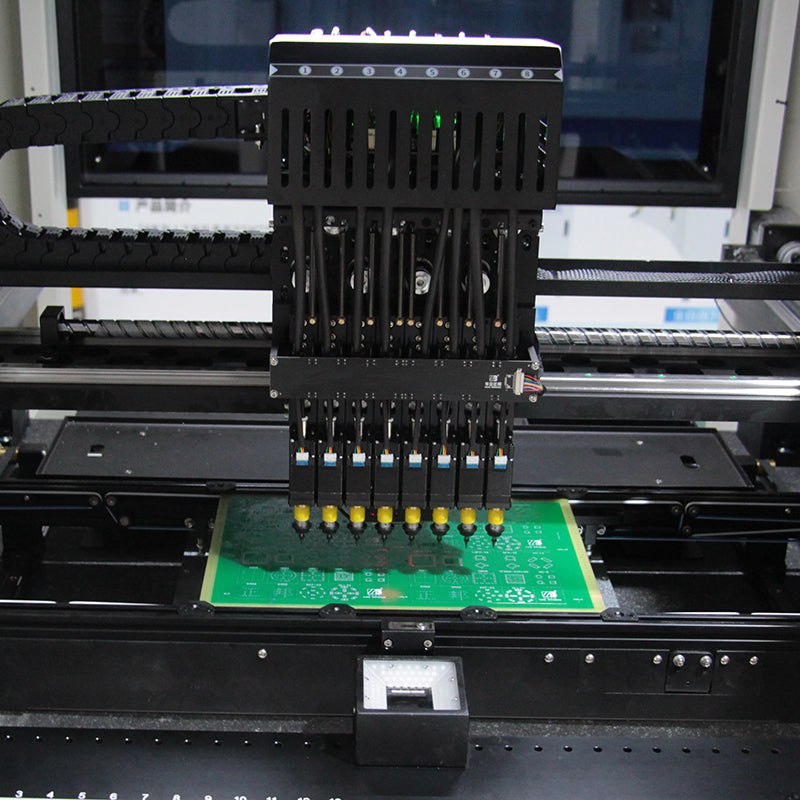

Number of mounting heads
|
6 heads (eight-head simultaneous pickup)
|
|||
|
Positioning accuracy
|
0.02mm
|
|||
|
Mounting accuracy
|
±0.05mm
|
|||
|
Mounting angle
|
0-360°
|
|||
|
Theoretical placement speed
|
28000 PCS/H
|
|||
|
Overall Placing CPH
|
16000 PCS/H
|
|||
|
Component height
|
≤13mm (customizable support)
|
|||
|
Nozzle Type
|
Juki
|
|||
|
Component dimensions
|
≤40mm (customizable support)
|
|||
|
Minimum board size
|
45x45mm
|
|||
|
Maximum board size (without tray)
|
500x520mm
|
|||
|
Maximum board size (with tray)
|
500x400mm
|
|||
|
Board thickness
|
≤3mm (customizable support)
|
|||
|
Permissible board warpage
|
≤2mm
|
|||
|
XY drive system
|
Servo drive + motor
|
|||
|

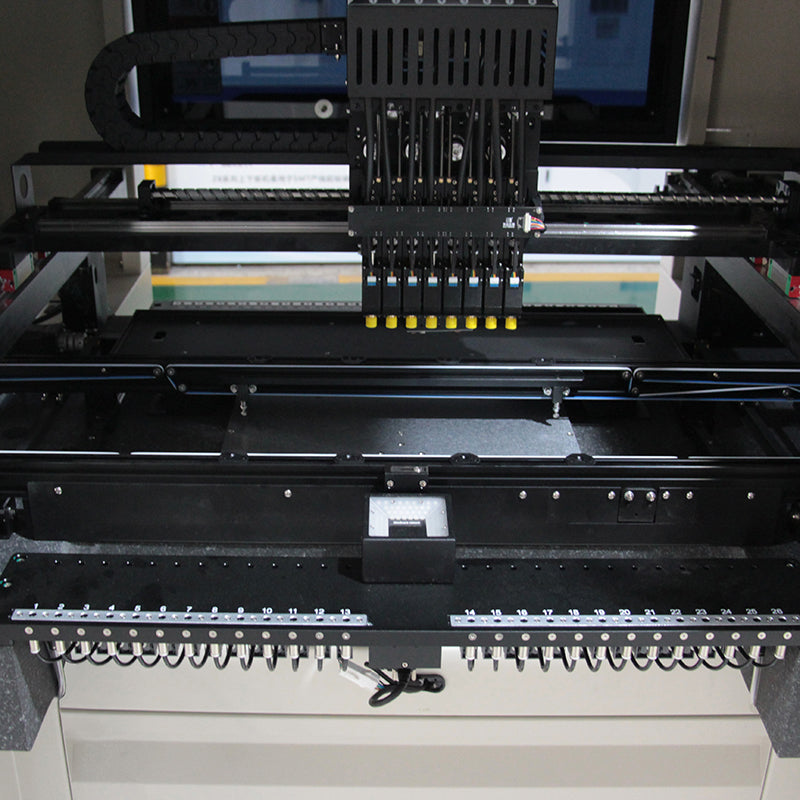

Number of component positions
|
70 positions
|
|||
|
X, Y-axis travel range
|
620mm x 700mm
|
|||
|
Z-axis mounting stroke
|
27mm
|
|||
|
R-axis rotation angle
|
0-360°
|
|||
|
Vision camera
|
Industrial Ethernet high-definition camera
|
|||
