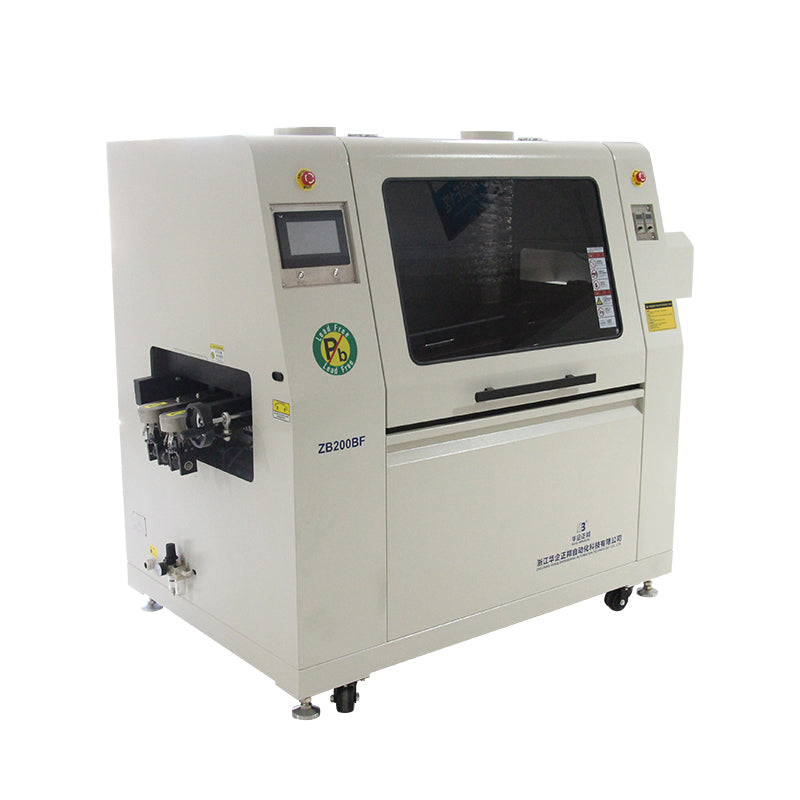

The ZB200BF Wave Soldering Machine is a compact and efficient solution designed for through-hole soldering in small to medium-scale production. Featuring precise temperature control, stable solder wave performance, and reliable PCB handling, it ensures consistent soldering quality for various THT applications.

Key Features

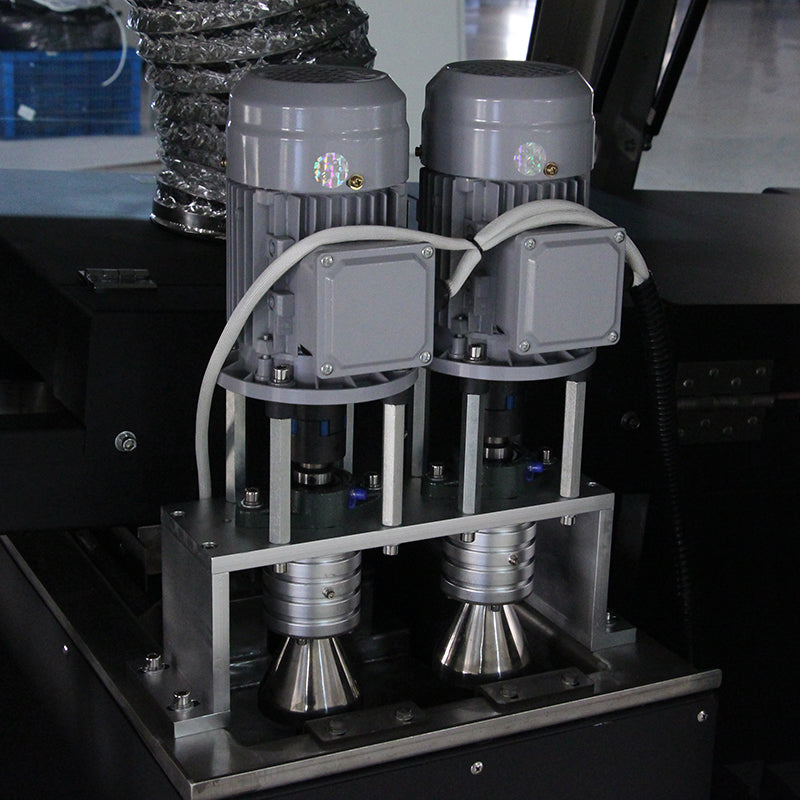

• High-Stability Solder Wave System
  Equipped with a precision-designed wave nozzle to provide uniform solder flow, ensuring excellent solder penetration and minimal bridging.

• Lead-Free Compatible Solder Pot
  High-quality stainless steel or titanium solder pot suitable for both leaded and lead-free solder, offering long service life and corrosion resistance.

• Advanced Temperature Control
  PID-controlled heating system delivers accurate and stable preheating and solder pot temperature for improved process reliability.

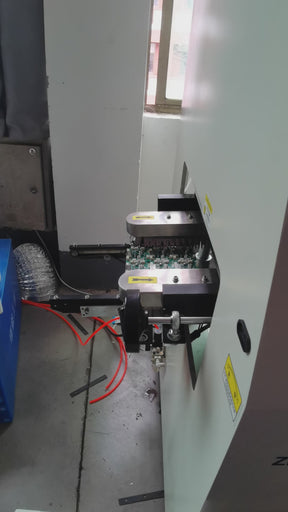

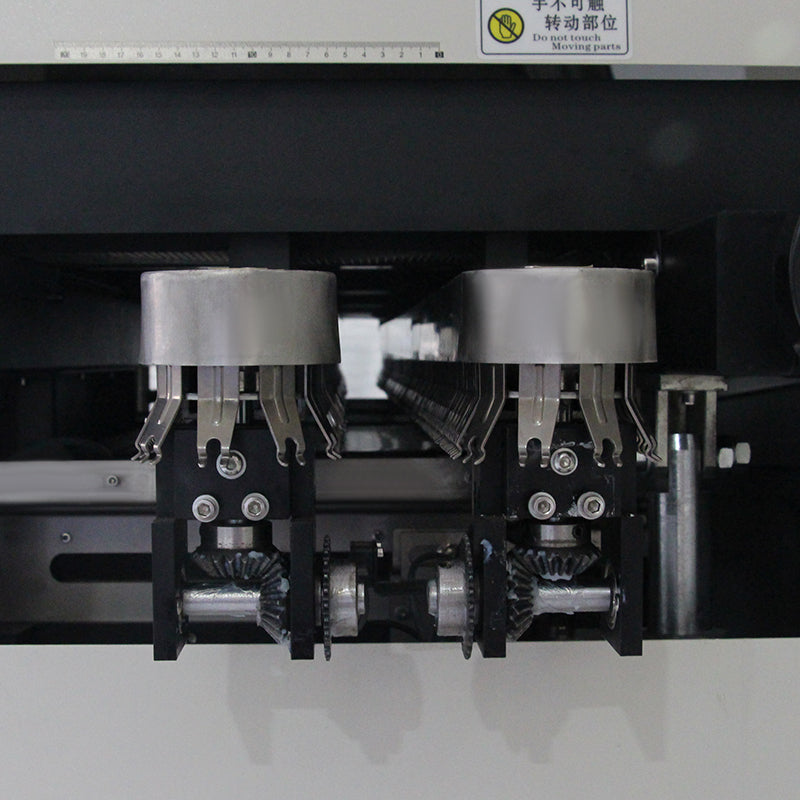

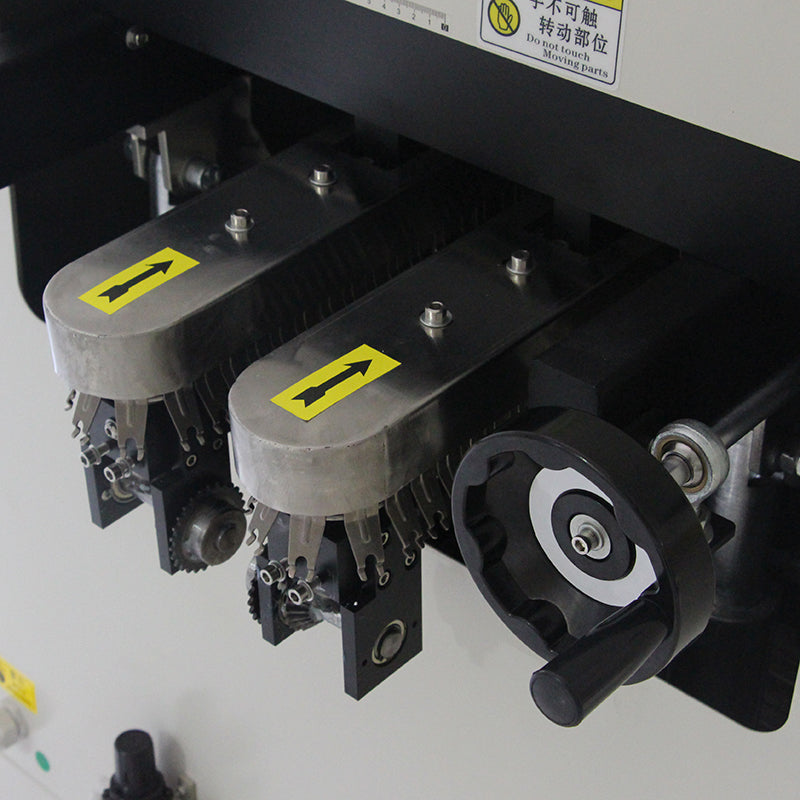

• Adjustable Conveyor System
  Conveyor speed, angle, and PCB transfer height can be customized to match different production requirements.

• Efficient Preheating Zone
  Ensures proper flux activation and reduces thermal shock, improving soldering quality and component reliability.

• User-Friendly Operation
  Intuitive control interface with real-time temperature display, fault alarms, and easy parameter adjustments.

• Compact Design for Flexible Layouts
  Ideal for small workshops, laboratories, and production lines with limited space while maintaining full wave soldering functionality.

Applications

• THT assembly soldering

• Power adapters, LED drivers, power boards

• Home appliance control boards

• Instrumentation and industrial control PCBs

• Small to medium batch electronic manufacturing
