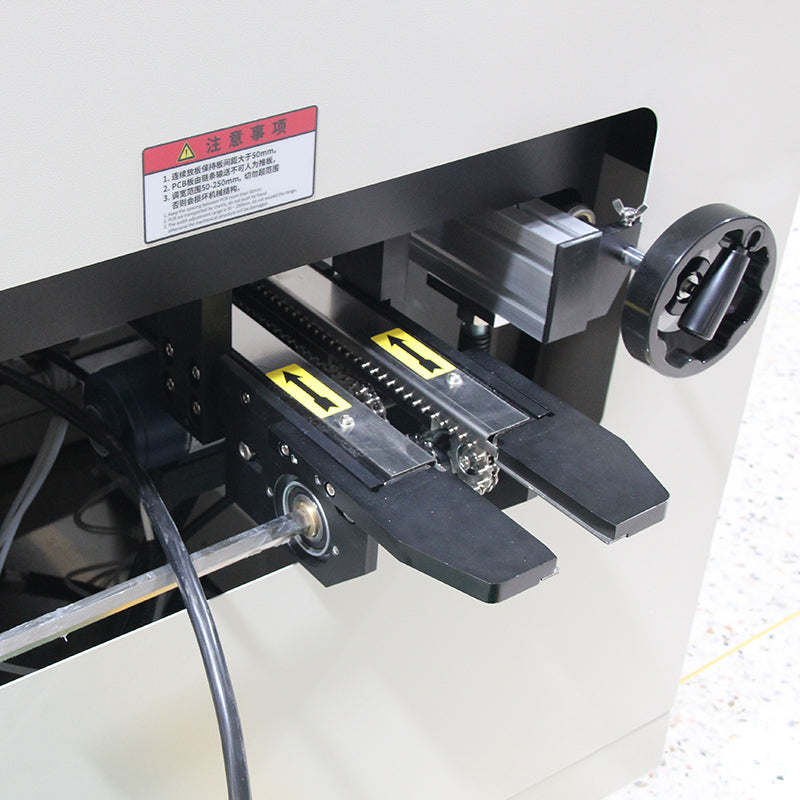

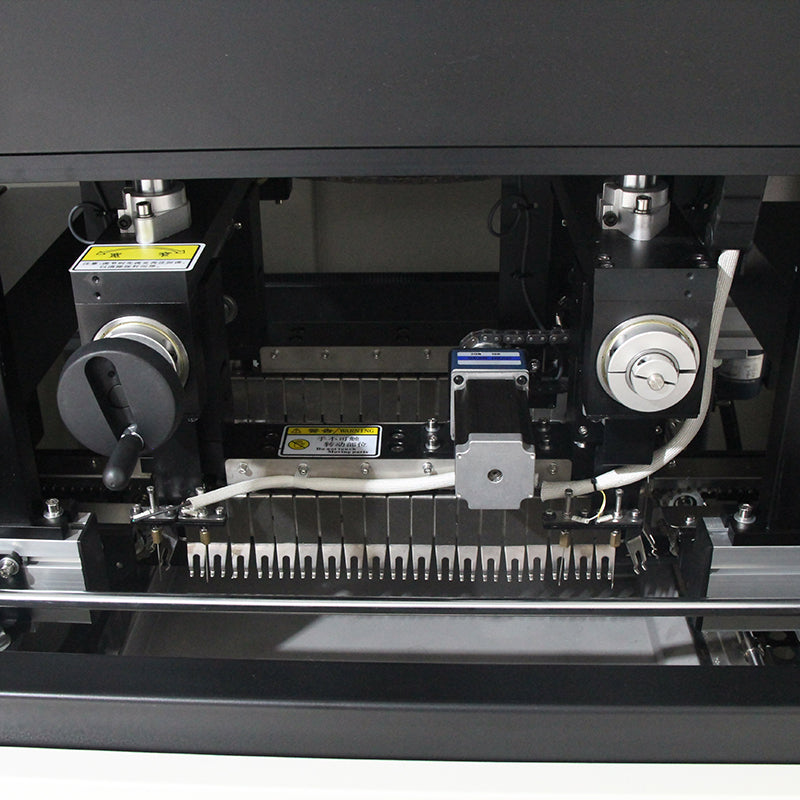

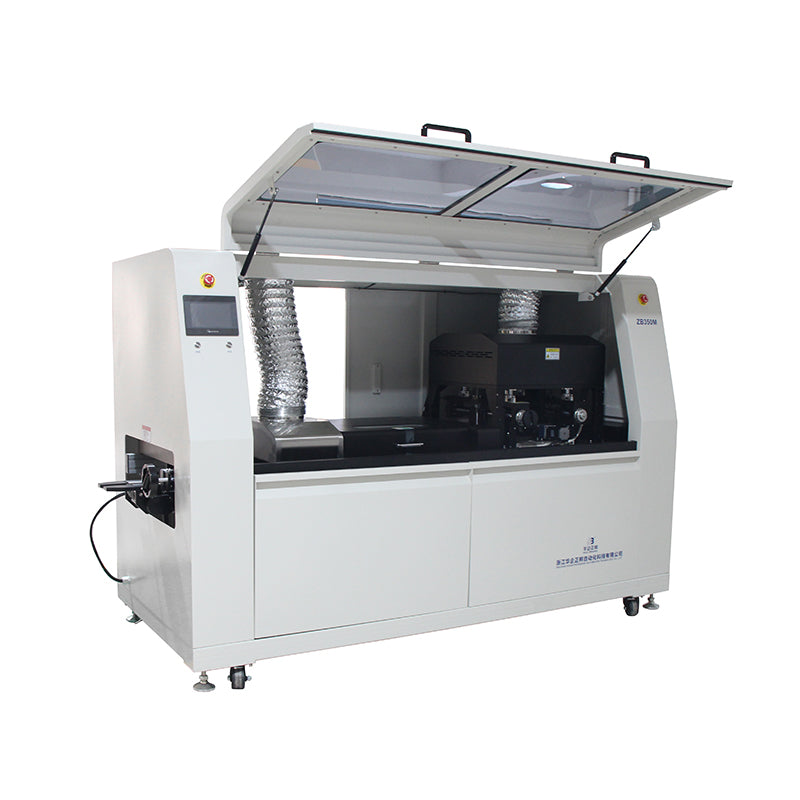

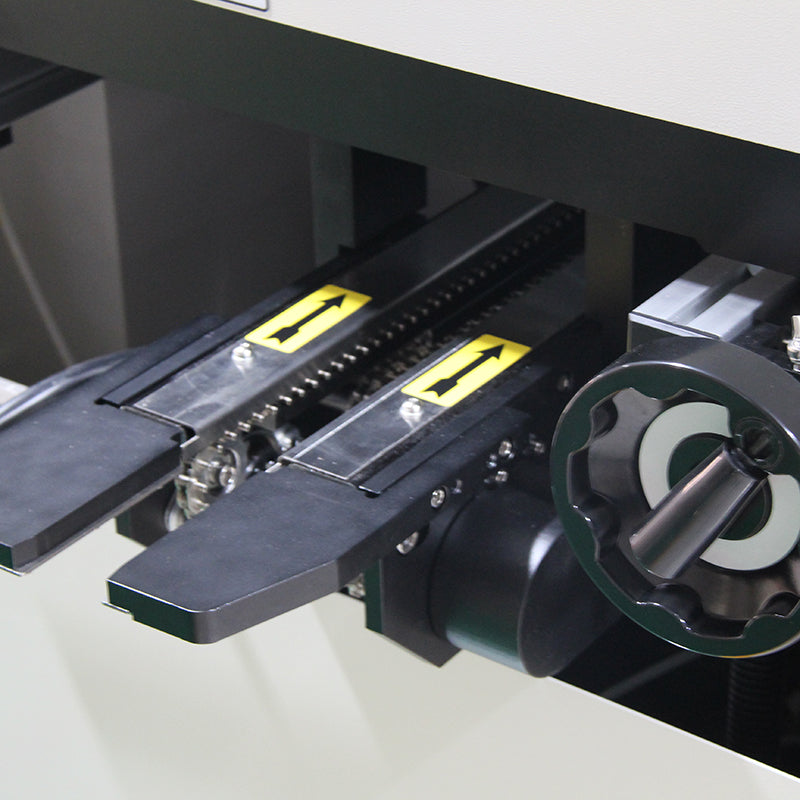

The ZB350M Automatic Dip Soldering Machine is a high-efficiency solution designed for through-hole component soldering in medium to large-scale production. Featuring precise temperature control, stable solder wave performance, and a fully automated dipping process, it delivers consistent soldering quality for various electronic assemblies.

Key Features

• Fully Automated Dipping Process
  Automatically controls PCB feeding, dipping depth, and dwell time to ensure uniform solder coverage and minimal operator intervention.

• High-Precision Temperature Control
  Equipped with an advanced PID temperature control system to maintain stable solder pot temperature for reliable soldering quality.

• Adjustable Soldering Parameters
  Dipping angle, dipping speed, and immersion time can be customized for different PCB types and component densities.

• Durable Stainless Steel Solder Pot
  Anti-corrosion, long-life solder pot design suitable for lead-free or leaded solder alloys.

• Smooth and Stable Lifting Mechanism
  Servo-driven or motor-controlled lifting system ensures smooth PCB movement with precise depth control.

• Compatible with Various Fixtures
  Supports universal and custom soldering jigs, suitable for small batch, multi-variety THT production.

• Safety and Reliability
  Over-temperature protection, emergency stop, and insulation design ensure safe operation in industrial environments.

Applications

• THT component dip soldering

• Power supplies, transformers, adapters

• LED lighting assemblies

• Home appliances and industrial control boards

• Product lines requiring consistent batch soldering

ZB350M Automatic Dip Soldering Machine Brochure
